- Garanzia di 36 mesi su tutti gli strumenti
- Oltre 40 anni di esperienza
- 15.000+ clienti soddisfatti
- Assistenza rapida grazie al laboratorio interno

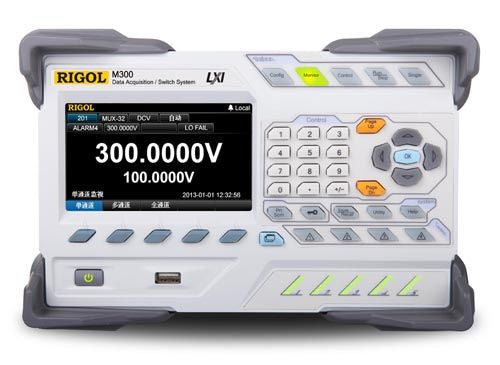

Multimetro scanner composto da:
- mainframe
- scheda multimetro 6 digit e 1/2 MC3065
- scheda multiplexer 20 canali MC3120
- morsettiera M3TB20
|
Mainframe Specs |
M302 |
|||||
|
Number of Slots |
5 (DMM and MC3120 use one of these slots each) |
|||||
|
Included Modules |
MC3065 DMM and MC3120 Module |
|||||
|
Interfaces |
USB Host & Device, LAN (LXIC), GPIB, RS-232 |
|||||
|
DMM Specs |
Please download M300 datasheet or User’s Guide for complete Model MC3065 DMM Module specs |
|||||
|
Switch Specs |
Multiplexer |
Actuator |
Matrix |
|||
|
General |
MC3120 |
MC3132 |
MC3164 |
MC3324 |
MC3416 |
MC3648 |
|
Number of Channels |
20 |
32 |
64 |
20 Voltage+4 Current |
16 |
4×8 |
|
2/4 wire[1] |
2/4 wire[1] |
1 wire [2] |
2/4 wire [3] |
SPDT |
2 wire |
|
|
Connect to DMM Module? |
Yes |
Yes |
Yes |
Yes |
No |
No |
|
Scanning Speed[4] |
60Ch/s |
60Ch/s |
60Ch/s |
60Ch/s |
—— |
—— |
|
Open/Close Speed |
200Ch/s |
200Ch/s |
200Ch/s |
200Ch/s |
200Ch/s |
200Ch/s |
|
Maximum Input |
||||||
|
Voltage (DC, AC rms) |
300Vrms |
300Vrms |
300Vrms |
300Vrms |
300Vrms |
300Vrms |
|
Current (DC, AC rms) |
1Arms |
1Arms |
1Arms |
1Arms |
2Arms |
1Arms |
|
Power (W, VA) |
50VA |
50VA |
50VA |
50VA |
60VA |
50VA |
|
Isolation (ch-ch, ch-earth) (DC, AC rms) |
300Vrms |
300Vrms |
300Vrms |
300Vrms |
300Vrms |
300Vrms |
Manuals:
M300_Datasheet
M300_User_Manual
M300_Selection_Guide
M300_Quick_Guide
M300_Programming_Guide
